基于Redis+ES的高效LBS
2025/11/24大约 5 分钟
基于Redis+ES的高效LBS
实现思路
用户 → Redis GEO 筛选附近用户 → ES 排序（标签+距离+活跃时间） → 返回结果标签相同个数按照从多到少排序，距离按照从近到远排序，活跃时间和当前时间的差
从小到大排序，主要目标对象还是附近的人所以先用Redis筛选附近的人
引入依赖
注意
ES版本是8.18.2
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- Spring Boot Redis Starter（默认 Lettuce 客户端）-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<!-- Elasticsearch Java API Client -->
<dependency>
<groupId>co.elastic.clients</groupId>
<artifactId>elasticsearch-java</artifactId>
<version>8.18.2</version>
</dependency>
<!-- 必须：transport 客户端 -->
<dependency>
<groupId>org.elasticsearch.client</groupId>
<artifactId>elasticsearch-rest-client</artifactId>
<version>8.18.2</version>
</dependency>
<!-- JSON 序列化（ES 官方默认使用 Jackson） -->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>简单Web逻辑代码
实体类
@Data
public class Location {
private Double lat;
private Double lon;
}@Data
public class User {
private Long id;
private String name;
private List<String> tags;
@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "Asia/Shanghai")
private Date lastLogin;
private Location location;
}@Data
public class UserVO {
private Long id;
private String name;
private List<String> tags;
@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "Asia/Shanghai")
private Date lastLogin;
private Double distance;
}ES配置类
@Configuration
public class ElasticsearchConfig {
@Value("${elasticsearch.host:localhost}")
private String host;
@Value("${elasticsearch.port:9200}")
private Integer port;
@Value("${elasticsearch.username:}")
private String username;
@Value("${elasticsearch.password:}")
private String password;
@Bean
public RestClient restClient() {
RestClientBuilder builder = RestClient.builder(
new HttpHost(host, port, "http")
);
// 如果配置了用户名和密码,则使用认证
if (username != null && !username.isEmpty()) {
CredentialsProvider credentialsProvider = new BasicCredentialsProvider();
credentialsProvider.setCredentials(
AuthScope.ANY,
new UsernamePasswordCredentials(username, password)
);
builder.setHttpClientConfigCallback(httpClientBuilder ->
httpClientBuilder.setDefaultCredentialsProvider(credentialsProvider)
);
}
return builder.build();
}
@Bean
public ElasticsearchTransport elasticsearchTransport(RestClient restClient) {
// ObjectMapper with JavaTimeModule
ObjectMapper mapper = new ObjectMapper();
mapper.registerModule(new JavaTimeModule());
mapper.disable(SerializationFeature.WRITE_DATES_AS_TIMESTAMPS);
// JacksonJsonpMapper 使用自定义的 ObjectMapper
JacksonJsonpMapper jsonpMapper = new JacksonJsonpMapper(mapper);
return new RestClientTransport(restClient, jsonpMapper);
}
@Bean
public ElasticsearchClient elasticsearchClient(ElasticsearchTransport transport) {
return new ElasticsearchClient(transport);
}
}Redis配置类
@Configuration
public class RedisConfig {
/**
* RedisTemplate 配置
*/
@Bean
public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) {
RedisTemplate<String, Object> template = new RedisTemplate<>();
template.setConnectionFactory(redisConnectionFactory);
// key 序列化
StringRedisSerializer stringSerializer = new StringRedisSerializer();
// value 序列化（JSON）
GenericJackson2JsonRedisSerializer jsonSerializer = new GenericJackson2JsonRedisSerializer();
// key & hash key
template.setKeySerializer(stringSerializer);
template.setHashKeySerializer(stringSerializer);
// value & hash value
template.setValueSerializer(jsonSerializer);
template.setHashValueSerializer(jsonSerializer);
template.afterPropertiesSet();
return template;
}
}controller类
@RestController
@RequestMapping("/user")
public class UserController {
@Resource
private ElasticsearchClient elasticsearchClient;
@Resource
private UserService userService;
@GetMapping("/createIndex")
public String createIndex() throws IOException {
if (elasticsearchClient.indices().exists(e -> e.index("user")).value()) {
return "索引 user 已存在";
}
TypeMapping mapping = new TypeMapping.Builder()
.properties("id", new Property.Builder()
.long_(l -> l)
.build())
.properties("name", new Property.Builder()
.keyword(k -> k)
.build())
.properties("tags", new Property.Builder()
.keyword(k -> k)
.build())
.properties("lastLogin", new Property.Builder()
.date(d -> d.format("yyyy-MM-dd HH:mm:ss||strict_date_optional_time"))
.build())
.properties("location", new Property.Builder()
.geoPoint(g -> g)
.build())
.build();
CreateIndexRequest createIndexRequest = new CreateIndexRequest.Builder()
.index("user")
.mappings(mapping)
.build();
CreateIndexResponse createIndexResponse = elasticsearchClient.indices().create(createIndexRequest);
return "user 索引创建成功";
}
/**
* 初始化 50 条假数据（写入 Redis + ES）
*/
@GetMapping("/init")
public String init() throws IOException {
userService.generateUsers();
return "初始化数据成功";
}
@PostMapping("/search")
public List<UserVO> query(@RequestBody User user){
if(user==null){
throw new RuntimeException("未登录");
}
if(user.getLocation()==null){
throw new RuntimeException("未开启位置定位，无法使用");
}
return userService.searchUsers(user);
}
}service接口
public interface UserService {
public void generateUsers() throws IOException;
List<UserVO> searchUsers(User user);
}service实现类(ES实现使用的是低级客户端，高级客户端lambda一堆报错)
@Service
public class UserServiceImpl implements UserService {
@Resource
private RedisTemplate<String, Object> redisTemplate;
@Resource
private ElasticsearchClient elasticsearchClient;
@Resource
private RestClient restClient;
private static final String GEO_KEY = "user:geo";
private static final List<String> TAG_POOL = Arrays.asList(
"唱歌", "跳舞", "Java", "LOL", "绘画", "健身", "旅游", "摄影", "美食", "篮球","C++","Rust","Go","C"
);
private static final double R = 6371.0;
@Override
public void generateUsers() throws IOException {
double baseLon = 116.403;
double baseLat = 39.923;
for (int i = 1; i <= 50; i++) {
User user = new User();
user.setId((long) i);
user.setName("用户" + i);
user.setLastLogin(new Date(System.currentTimeMillis() - new Random().nextInt(600) * 60 * 1000L));
// 随机兴趣标签
Collections.shuffle(TAG_POOL);
user.setTags(TAG_POOL.subList(0, 3));
// 随机坐标
double lon = baseLon + (Math.random() - 0.5) * 0.04;
double lat = baseLat + (Math.random() - 0.5) * 0.04;
// 使用 Location 类来设置坐标（关键修改点）
Location location = new Location();
location.setLat(lat);
location.setLon(lon);
user.setLocation(location);
// Redis GEO 使用 lon + lat
redisTemplate.opsForGeo().add(
GEO_KEY,
new Point(lon, lat),
user.getId().toString()
);
// 写入 ES（自动序列化为 { "lat": xx, "lon": xx }）
elasticsearchClient.index(k -> k
.index("user")
.id(user.getId().toString())
.document(user)
);
}
}
@Override
public List<UserVO> searchUsers(User requestUser) {
double lat = requestUser.getLocation().getLat();
double lon = requestUser.getLocation().getLon();
List<String> tags = requestUser.getTags();
if (tags == null || tags.isEmpty()) {
throw new RuntimeException("请至少传入一个兴趣标签");
}
try {
//1. Redis 查询附近用户（半径 5km）
GeoResults<RedisGeoCommands.GeoLocation<Object>> nearby =
redisTemplate.opsForGeo().radius(
GEO_KEY,
new Circle(new Point(lon, lat), new Distance(5, Metrics.KILOMETERS)),
RedisGeoCommands.GeoRadiusCommandArgs.newGeoRadiusArgs().sortAscending()
);
List<String> nearIds = nearby.getContent()
.stream()
.map(r -> r.getContent().getName().toString()) // ← 必须 toString
.collect(Collectors.toList());
// 删除当前用户自身
nearIds.remove(requestUser.getId().toString());
// 附近没人直接返回空
if (nearIds.isEmpty()) {
return Collections.emptyList();
}
// 构造 terms id 过滤字段
String filterIds = nearIds.stream()
.map(id -> "\"" + id + "\"")
.collect(Collectors.joining(","));
// ========== 2. 构造 should (tags) ==========
String shouldTags = tags.stream()
.map(t -> "{\"term\":{\"tags\":\"" + t + "\"}}")
.collect(Collectors.joining(","));
// ========== 3. painless 参数 ==========
String paramsTags = tags.stream()
.map(t -> "\"" + t + "\"")
.collect(Collectors.joining(","));
// ========== 4. 当前时间（用于 lastLogin decay） ==========
String nowStr = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss").format(new Date());
// ========== 5. ES 查询 JSON ==========
String jsonQuery =
"{\n" +
" \"size\": 5,\n" +
" \"query\": {\n" +
" \"bool\": {\n" +
" \"filter\": {\n" +
" \"terms\": { \"id\": [" + filterIds + "] }\n" +
" },\n" +
" \"must\": {\n" +
" \"function_score\": {\n" +
" \"query\": {\"bool\": {\"should\": [" + shouldTags + "], \"minimum_should_match\": 1}},\n" +
" \"functions\": [\n" +
" {\n" +
" \"script_score\": {\n" +
" \"script\": {\n" +
" \"source\": \"int s=0; for(tag in params.tags){ if(doc['tags'].contains(tag)){s++;}} return s;\",\n" +
" \"params\": {\"tags\": [" + paramsTags + "]}\n" +
" }\n" +
" },\n" +
" \"weight\": 3\n" +
" },\n" +
" {\n" +
" \"gauss\": {\"lastLogin\": {\"origin\": \"" + nowStr + "\", \"scale\": \"2h\", \"decay\": 0.5}},\n" +
" \"weight\": 2\n" +
" },\n" +
" {\n" +
" \"gauss\": {\"location\": {\"origin\": \"" + lat + "," + lon + "\", \"scale\": \"3km\", \"decay\": 0.5}},\n" +
" \"weight\": 3\n" +
" }\n" +
" ],\n" +
" \"score_mode\": \"sum\",\n" +
" \"boost_mode\": \"sum\"\n" +
" }\n" +
" }\n" +
" }\n" +
" }\n" +
"}";
// ========== 6. 调 ES ==========
Request req = new Request("GET", "/user/_search");
req.setJsonEntity(jsonQuery);
Response response = restClient.performRequest(req);
String json = EntityUtils.toString(response.getEntity(), "UTF-8");
// ========== 7. 解析结果 ==========
ObjectMapper mapper = new ObjectMapper();
mapper.registerModule(new JavaTimeModule());
mapper.disable(SerializationFeature.WRITE_DATES_AS_TIMESTAMPS);
JsonNode hits = mapper.readTree(json).path("hits").path("hits");
List<UserVO> result = new ArrayList<>();
for (JsonNode hit : hits) {
User u = mapper.treeToValue(hit.path("_source"), User.class);
UserVO vo = new UserVO();
BeanUtils.copyProperties(u, vo);
// 计算真实距离（2位小数）
double dist = calculateDistance(lat, lon,
u.getLocation().getLat(), u.getLocation().getLon());
vo.setDistance(dist);
result.add(vo);
}
return result;
} catch (Exception e) {
throw new RuntimeException("搜索失败：" + e.getMessage(), e);
}
}
private double calculateDistance(double lat1, double lon1, double lat2, double lon2) {
// 地球半径 km
double dLat = Math.toRadians(lat2 - lat1);
double dLon = Math.toRadians(lon2 - lon1);
lat1 = Math.toRadians(lat1);
lat2 = Math.toRadians(lat2);
double a = Math.sin(dLat / 2) * Math.sin(dLat / 2)
+ Math.cos(lat1) * Math.cos(lat2)
* Math.sin(dLon / 2) * Math.sin(dLon / 2);
double c = 2 * Math.atan2(Math.sqrt(a), Math.sqrt(1 - a));
double distance = R * c;
return new BigDecimal(distance)
.setScale(2, RoundingMode.HALF_UP)
.doubleValue();
}
}yml配置(ES未开始HTTPS)
server:
port: 8080
servlet:
context-path: /api
spring:
redis:
host: localhost
port: 6379
elasticsearch:
host: localhost
port: 9200Postman测试

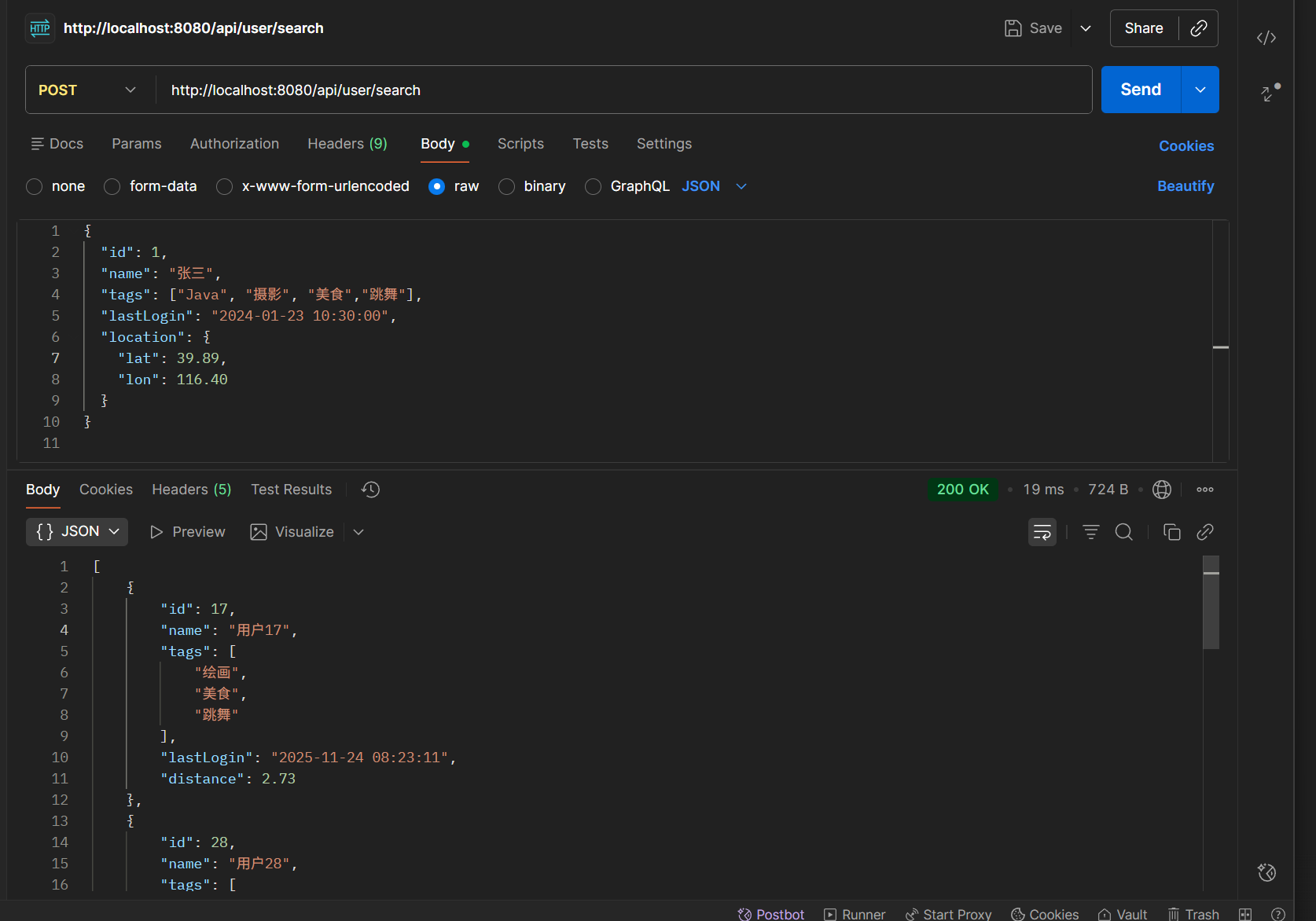

GET
http://localhost:8080/api/user/createIndexGET
http://localhost:8080/api/user/initPOST
http://localhost:8080/api/user/searchPOST方法的body
{
"id": 1,
"name": "张三",
"tags": ["Java", "摄影", "美食","跳舞"],
"lastLogin": "2024-01-23 10:30:00",
"location": {
"lat": 39.89,
"lon": 116.40
}
}测试结果结果：
